TIME：2022-07-31
| Part Number | Description | Crusher Type | Weight |
| 1001998504 | HOSE ADAPTER 210292-4S | HP200 | 0.009 |
| 1003086056 | WASHER LOCK M8, 8.4X13.0X0.8MM, S 8 | HP200 | 0.010 |
| 1003722557 | BOLT HEX ISO4014-M10X35-9.8-UNPLTD | HP200 | 0.033 |
| 1004590540 | INSULATION UNFACED,15″W X 3.50″THK X 1 | HP200 | 12.240 |
| 1018780302 | SQUARE 12 LG.50 | HP200 | 0.100 |
| 1018780323 | SAFETY BLOCK | HP200 | 1.700 |
| 1020962100 | SLIDE | HP200 | 9.200 |
| 1022061401 | CNTRSHFT BUSHING | HP200 | 7.500 |
| 1022072951 | ECCENT BUSH INNER | HP200 | 38.000 |
| 1022130524 | BUSHING | HP200 | 1.000 |
| 1022145719 | HEAD BUSHING UPPER HP200 | HP200 | 8.200 |
| 1022145730 | HEAD BUSHING LOW | HP200 | 29.000 |
| 1022814802 | ADJUSTMENT CAP | HP200 | 334.000 |
| 1036829635 | PINION | HP200 | 28.000 |
| 1036829652 | DRIVE GEAR | HP200 | 64.000 |
| 1038067315 | ARM GRD | HP200 | 35.000 |
| 1044180300 | FEED HOPPER UPR | HP200 | 92.000 |
| 1044180301 | FEED HOPPER LOW | HP200 | 96.000 |
| 1044251246 | HOSE HP 6,35 L.275 | HP200 | 0.100 |
| 1044251345 | HOSE HP 6,35 L.493 | HP200 | 0.100 |
| 1044251435 | HOSE HP 6,35 L.425 | HP200 | 0.200 |
| 1044252204 | HYDR HOSE HP 9,5 L=775 | HP200 | 0.400 |
| 1044252260 | HYDR HOSE HP 9,5 L=635 | HP200 | 0.400 |
| 1044252586 | HYDR HOSE HP 9,5 L=1280 | HP200 | 0.800 |
| 1048512826 | MAIN FRAME LINER | HP200 | 211.000 |
| 1048721001 | SOCKET LINER | HP200 | 28.000 |

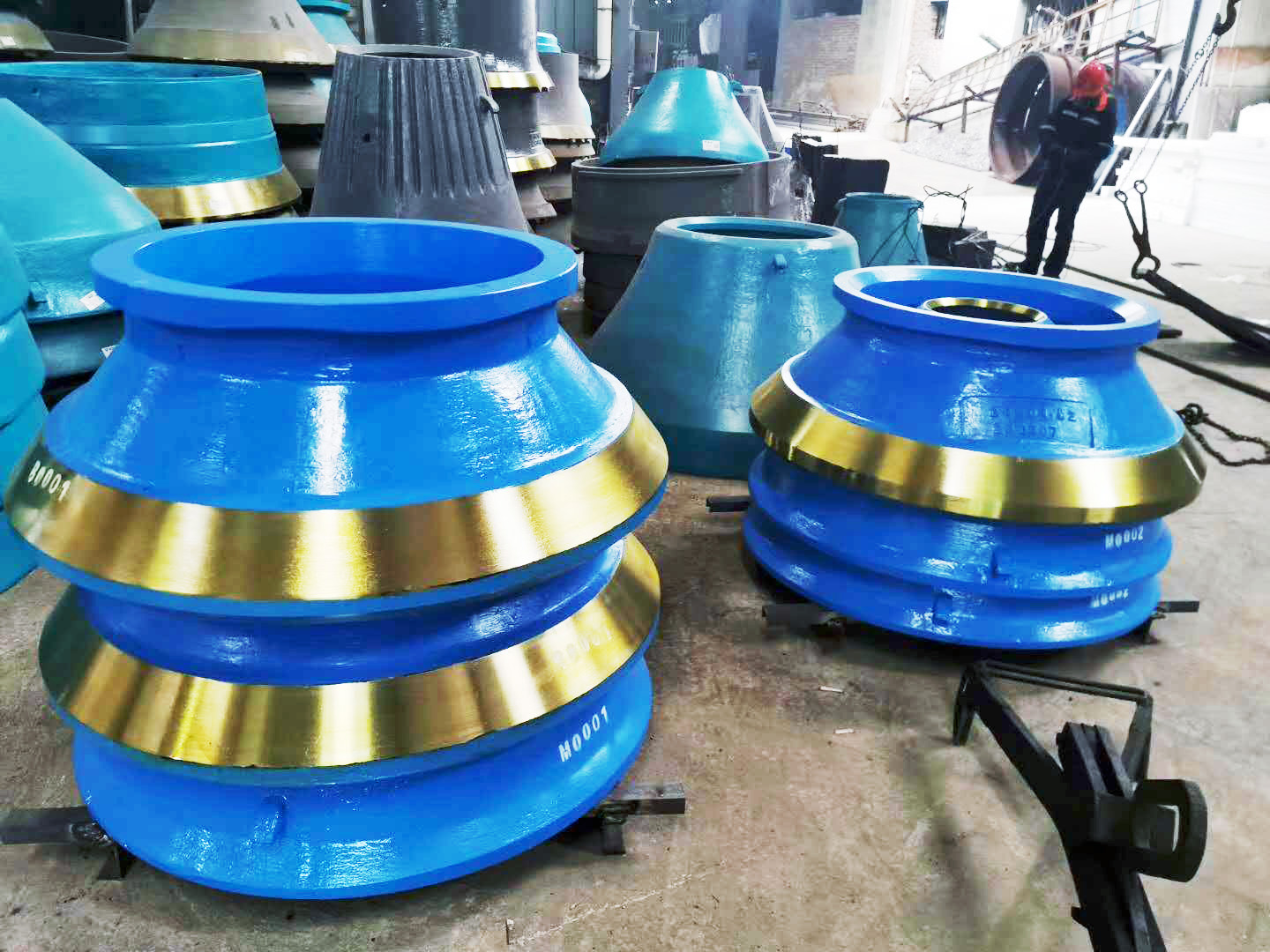

| 1050130813 | MANTLE STD F/M/C | HP200 | 482.000 |
| 1050130815 | MANTLE SH F/M/C | HP200 | 429.000 |
| 1051483199 | NUT SPHERICAL H,M30 | HP200 | 0.200 |
| 1051489347 | NUT SPHERICAL H,M48 | HP200 | 1.000 |
| 1054268448 | AXLE | HP200 | 2.500 |
| 1054440195 | MAIN FRAME PIN | HP200 | 2.700 |
| 1056124845 | FLAT BAR 40X5 L.60 | HP200 | 0.100 |
| 1056835500 | WASHER LOCK | HP200 | 2.900 |
| 1056839385 | NUT-LOCK U C/PL.50 | HP200 | 0.300 |
| 1057602103 | THRUST BRNG UPR | HP200 | 12.000 |
| 1057612000 | HEAD BALL | HP200 | 31.000 |
| 1057612102 | THRUST BRNG LOW | HP200 | 12.000 |
| 1061871913 | CLAMPING RING | HP200 | 225.000 |
| 1062440046 | DRIVE GEAR | HP200 | 365.000 |
| 1063083600 | PISTON SEAL | HP200 | 0.200 |
| 1063518480 | T-JOINT | HP200 | 1.000 |
| 1063518780 | U-SEAL | HP200 | 1.500 |
| 1063914005 | TORCH RING | HP200 | 4.800 |
| 1063917032 | BOWL ADAPTER RING | HP200 | 51.000 |
| 1064666524 | PROTECTION PLATE | HP200 | 0.600 |
| 1065633691 | ROD | HP200 | 13.000 |
| 1068634853 | CNTRSHFT | HP200 | 63.000 |
| 1070588720 | SHIM 0,5 | HP200 | 0.500 |
| 1070588722 | SHIM 0,8 | HP200 | 0.900 |
| 1070588724 | SHIM | HP200 | 0.700 |
| 1070588726 | SHIM 3 | HP200 | 3.800 |
| 1073810178 | SOCKET | HP200 | 33.000 |
| 1080960105 | LIFTING PLATE | HP200 | 10.100 |
| 1086342201 | WEDGE | HP200 | 1.200 |
| 1087729018 | WRENCH HEAD NUT | HP200 | 31.600 |
| 1087800740 | WRENCH PINION | HP200 | 4.400 |
| 1093020067 | ROD ASSY | HP200 | 23.000 |
| 1093020069 | SEAL KIT | HP200 | 0.360 |
| 1094260037 | CLAMPING CYL ASSY | HP200 | 5.200 |
| 1094260094 | SEAL KIT | HP200 | 0.040 |
| 7001530511 | SCREW HEX ISO4017-M24X50-8.8-A3A | HP200 | 0.300 |
| 7001530516 | BOLT HEX ISO4014-M24X60-8.8-A3A | HP200 | 0.300 |
| 7001530636 | SCREW HEX ISO4017-M30X220-8.8-A3A | HP200 | 1.600 |
| 7001530883 | BOLT HEX ISO4014-M42X130-8.8-A3A | HP200 | 1.800 |
| 7001532140 | SCREW HEX ISO4017-M10X25-10.9-UNPLTD | HP200 | 0.200 |
| 7001532147 | BOLT HEX ISO4014-M10X45-10.9-UNPLTD | HP200 | 0.060 |
| 7001532249 | SCREW HEX ISO4017-M14X25-10.9-UNPLTD | HP200 | 0.050 |
| 7001532410 | SCREW HEX ISO4017-M20X50-10.9-UNPLTD | HP200 | 0.200 |
| 7001548126 | SET SCREW SCKT HD ISO4029-M16X40-45H-A3 | HP200 | 0.040 |
| 7001612058 | SPLIT PIN ISO1234-4X50-ST-UNPLTD | HP200 | 0.005 |
| 7001612100 | SPLIT PIN ISO1234-8X100-ST | HP200 | 0.100 |
| 7001619272 | PARALLEL PIN ISO8734-16X40-A-ST-UNPLTD | HP200 | 0.100 |
| 7001619276 | PARALLEL PIN ISO8734-16X60-A-ST-UNPLTD | HP200 | 0.100 |
| 7001619305 | PARALLEL PIN ISO8734-20X60-A-ST-UNPLTD | HP200 | 0.200 |
| 7001630008 | WASHER LOCK SRRTD DIN6798J-M8-ZN | HP200 | 0.001 |
| 7001836114 | EYE BOLT M14, 252-7, 1325 | HP200 | 0.000 |
| 7001846108 | EYE BOLT 7189 B | HP200 | 0.100 |
| 7002003004 | REDUCTION NIPPLE ISO49-N8-1/2X3/8-ZN-A | HP200 | 0.100 |
| 7002076003 | PLUG ISO49-T8-3/8-ZN-A | HP200 | 0.100 |
| 7002118096 | CLAMP SX 14 182-202 | HP200 | 0.100 |
| 7002118832 | COLLAR STAUBLI.SP218/18PPHGDAS – 18 | HP200 | 0.100 |
| 7002149009 | COUPLING HOUSING LR250/122 | HP200 | 25.000 |
| 7002150036 | PUMP R1A5085/073005AC – 120L/MN | HP200 | 27.000 |
| 7002152731 | GEAR KIT P60R5085C01+P61R5085C04+P82620 | HP200 | 0.000 |
| 7002152881 | BRNG KIT P9016000101 + PR50R000001 + PR | HP200 | 0.000 |
| 7002407166 | CNNCTN MALE SA102111-3248 | HP200 | 0.200 |
| 7002431027 | NUT CAP 210292-20S | HP200 | 0.010 |
| 7002445771 | FILTER CARTRIDGE MP68M90A | HP200 | 1.400 |
| 7002480053 | CARTRIDGE FILTER MF100-3A10HB | HP200 | 0.360 |
| 7002480055 | DRIVE VALVE | HP200 | 0.200 |
| 7002480056 | PRSSR REL VALVE HSP 2C08 H 20 T | HP200 | 0.200 |
| 7002480057 | PRSSR REL VALVE HSP 2C08 H20T – 120B | HP200 | 0.200 |
| 7002480071 | PUMP P1 BAN 2518 HA 2004HL10 B02-27.5L/ | HP200 | 4.800 |
| 7002480135 | PRSSR REL VALVE HSP2L08GH35T – 250B | HP200 | 0.570 |
| 7002480136 | PRESSURE RELIEF VALVE HSP2L08GH35T -350 | HP200 | 0.000 |
| 7002480212 | MANOMETER UC1696 D63 – 0/400B | HP200 | 0.300 |
| 7002480477 | HOSE LG.800 HT FL1 | HP200 | 0.100 |
| 7002480478 | HOSE LG.800 HT FL2 | HP200 | 0.100 |
| 7002480479 | HOSE LG.440 HT FL3 | HP200 | 1.500 |
| 7002482040 | HOSE LG.395 HT FL4 | HP200 | 0.100 |
| 7002482041 | CAPILLARY 0.280 HT CAP1 | HP200 | 0.040 |
| 7002482042 | CAPILLARY 0.560 HT CAP2 | HP200 | 0.040 |
| 7002482043 | CAPILLARY 0.640 HT CAP3 | HP200 | 0.040 |
| 7002482044 | CAPILLARY 0.560 HT CAP4 | HP200 | 0.040 |
| 7002495416 | BREAKER LD1-LB030F | HP200 | 0.500 |
| 7002704131 | V-RING TWVA01300 | HP200 | 0.100 |
| 7002705050 | STRIP FELT 50X20 | HP200 | 0.270 |
| 7003222190 | V-BELT ISO4184-SPC 4500 | HP200 | 1.600 |
| 7003229876 | DTACHBL HUB PULLEY ML315 SPC8/4040 | HP200 | 57.200 |
| 7003229878 | DTACHBL HUB PULLEY ML355 SPC8/4040 | HP200 | 64.900 |
| 7003239237 | HUB MAGIC-LOCK 4040 BORE 85 | HP200 | 6.900 |
| 7003239243 | HUB MAGIC-LOCK 4545 BORE 85 | HP200 | 10.000 |
| 7003239252 | HUB VECOBLOC / MAGIC LOCK – 115-115-90 | HP200 | 10.000 |
| 7004205203 | PAD RUBBER 539607-45 | HP200 | 5.000 |
| 7005255835 | ELECTRIC SWITCH CA10YFA035EFSOF0001 | HP200 | 0.454 |
| 7005630051 | GEAR BRAKE MOTOR MZG100AZ1X/M1A-ED2030M | HP200 | 50.000 |
| 7008010003 | THREADLOCKER HARD 2870 | HP200 | 0.200 |
| 7008010102 | GLUE 326, 50G | HP200 | 0.050 |
| 7008010103 | ACTIVATOR 7649 | HP200 | 0.050 |
| 7012504003 | ADJSTM RING | HP200 | 1,010.000 |
| 7013308001 | MAIN SHAFT | HP200 | 303.000 |
| 7018307007 | MAIN FRAME HP200 SX | HP200 | 2,150.000 |
| 7022072000 | CNTRWGHT LINER | HP200 | 65.000 |
| 7022102250 | CNTRSHFT GRD | HP200 | 16.000 |
| 7022300502 | DRILLED BLOCK | HP200 | 22.000 |
| 7023455502 | ADJSTM CAP | HP200 | 305.000 |
| 7023508000 | BOWL | HP200 | 1,430.000 |
| 7023508002 | BOWL | HP200 | 1,500.000 |
| 7023604000 | CAP FOAM RUBBER | HP200 | 0.100 |
| 7027005255 | SHIM | HP200 | 1.200 |
| 7028450751 | SQUARE BAR 14 L.40 | HP200 | 0.100 |
| 7031800008 | WRENCH CNTRSHFT | HP200 | 31.200 |
| 7033100016 | OIL FLINGER | HP200 | 9.300 |
| 7033100511 | COLLAR | HP200 | 1.000 |
| 7035912254 | COVER | HP200 | 9.100 |
| 7041068006 | BOLT LOCK | HP200 | 20.000 |
| 7043200011 | U-BOLT M12X95 | HP200 | 0.300 |
| 7043358004 | ECCENTRIC | HP200 | 220.000 |
| 7046600101 | CHECK GAUGE THREAD WEAR GAUGE | HP200 | 0.500 |
| 7049330251 | PIN 25X60 | HP200 | 0.300 |
| 7053129001 | GASKET | HP200 | 2.400 |
| 7057500007 | GEAR BRAKE MOTOR | HP200 | 63.000 |
| 7064351011 | INSTR PLATE | HP200 | 0.100 |
| 7065558051 | FEED CONE HP200 | HP200 | 10.500 |
| 7081108001 | DUST SHELL | HP200 | 115.200 |
| 7081108007 | DUST SHELL | HP200 | 55.000 |
| 7082404309 | HEAD HP200 | HP200 | 610.000 |
| 7086401504 | HOSE 8/16 LG.700 | HP200 | 0.600 |
| 7086401507 | HOSE 8/16 L.1000 | HP200 | 1.000 |
| 7086401752 | HOSE 12/16 LG.655 | HP200 | 1.300 |
| 7086402020 | HOSE 20/16 LG.1130 | HP200 | 2.100 |
| 7086402566 | HOSE 1″1/2 L= 495 | HP200 | 2.100 |
| 7086403289 | HOSE 3″ LG.4000 | HP200 | 3.200 |
| 7086403290 | HOSE 3″ LG.6000 | HP200 | 19.200 |
| 7088010081 | TRAMP RELEASE CYLINDER | HP200 | 90.500 |
| 7088463250 | BOLT SQUARE HEAD M30X60/55 | HP200 | 0.800 |
| 7090008016 | MAIN FRAME ASSY STD HP-200 | HP200 | 2,813.500 |
| 7090018006 | CNTRSHFT ASSY STD | HP200 | 113.300 |
| 7090058013 | HEAD ASSEMBLY STD | HP200 | 687.000 |
| 7090228204 | GEAR ECCENT ASSY | HP200 | 334.500 |
| 7090258001 | BOWL ASSEMBLY STD | HP200 | 1,764.800 |
| 7090258005 | BOWL ASSY OPTION: FOR THICK LINERS | HP200 | 1,805.800 |
| 7090288004 | TOOL ASSY TOOLS WITHOUT CHARGING ASSY | HP200 | 145.200 |
| 700002108T | ADAPTER | HP200 | 1.200 |
| MM0204772 | MOTOR Y2-315L1-4/160KW,HP200 TIANJIN PUR | HP200 | 0.000 |
| MM0210350 | CONTROL CABIN 160KW | HP200 | 0.000 |
| MM0212103 | BUSHING 3525X80 | HP200 | 0.000 |
| MM0226622 | ELECTRIC CABLE H022,380V/SOFT-START-UP W | HP200 | 0.000 |
| MM0228351 | CONTROL CABIN H003 | HP200 | 0.000 |
| MM0233600 | BELL HOUSING PTS-300/2.0/M/168/FL034 | HP200 | 0.800 |
| MM0237698 | PRESSURE SENSOR PN7001…115BAR | HP200 | 0.250 |
| MM0251105 | FLEXIBLE COUPLING 28/38-30H7X50/25,4HS- | HP200 | 0.200 |
| MM0316780 | MOTOR CONTROL CENTER PJ1146KHM10089G1146 | HP200 | 320.000 |
| MM0317130 | SOFT STARTER ATS48C41Y | HP200 | 54.100 |
| N01530550 | BOLT HEX ISO4014-M24X160-8.8-A3A | HP200 | 0.700 |
| N02125151 | PRESSURE SW RPPA-AA3-201 | HP200 | 2.400 |
| N02150060 | GEAR PUMP KP30.73D0-33S3-LGG/GG-N (104L | HP200 | 15.500 |
| N02152775 | GASKET KIT 62047178 | HP200 | 0.100 |
| N02152776 | GASKET KIT 62047312 | HP200 | 0.250 |
| N02154812 | COOLER OK-P10S/1.0/M/C/1/IBP3 VOLT1 | HP200 | 120.000 |
| N02445072 | PRSSR REL VALVE BY-PASS INTEGRE-IBP3-31 | HP200 | 0.300 |
| N02445073 | REGULATOR FDCB-LAN | HP200 | 0.100 |
| N02445074 | REGULATOR FDBA-LAN | HP200 | 0.150 |
| N02445266 | KIT 3184087 REP. KIT SB330/400-4 ECO | HP200 | 0.300 |
| N02445276 | SPARE PART KIT 3184086 KIT REP.SB330-4 | HP200 | 0.907 |
| N02445973 | SOLENOID VALVE WSM06020Z-01-C-N-24VDG-Z4 | HP200 | 0.330 |
| N02495433 | PROTECTION LB1-LB03P08 | HP200 | 0.500 |
| N03460523 | COUPLING 25.4/28 ND65H7D35+R62+ND65C | HP200 | 0.200 |
| N03460524 | COUPLING 25.4/38 ND86H6D35+R82+ND86B | HP200 | 0.200 |
| N12504016 | ADJSTM RING KIT | HP200 | 1,041.000 |
| N13502571 | ELCTRCL CABINET A2020 HP200/300 | HP200 | 90.000 |
| N16200121 | CNTRWGHT HP200 EXCENTRIQUE NORMAL | HP200 | 273.000 |
| N28000852 | BELT GRD ASSY PAINTED | HP200 | 196.250 |
| N29201816 | DRILLED BLOCK HP200/300/400 | HP200 | 50.000 |
| N29203001 | HYDR MOTOR ASSY | HP200 | 10.000 |
| N34360029 | SUPPORT | HP200 | 0.300 |
| N44451779 | HOSE HP 6,35 L.285 | HP200 | 0.300 |
| N44453804 | CAPILLARY LG.600 | HP200 | 0.500 |
| N53140026 | GASKET | HP200 | 0.600 |
| N55208135 | BOWL LINER STD C | HP200 | 550.000 |
| N55208137 | BOWL LINER STD M | HP200 | 526.000 |
| N55208138 | BOWL LINER STD M | HP200 | 526.000 |
| N55208140 | BOWL LINER STD F | HP200 | 537.000 |
| N55208141 | BOWL LINER STD F | HP200 | 537.000 |
| N55208144 | BOWL LINER SH C | HP200 | 498.000 |
| N55208146 | BOWL LINER SH M | HP200 | 510.000 |
| N55208147 | BOWL LINER SH M | HP200 | 510.000 |
| N55208150 | BOWL LINER SH F | HP200 | 505.000 |
| N55208153 | BOWL LINER SH EXTRA-FINE | HP200 | 372.000 |
| N55308011 | MANTLE STD F/M/C | HP200 | 482.000 |
| N55308012 | MANTLE SH F/M/C | HP200 | 429.000 |
| N90198350 | COOLER ASSY HP200/300 400V-50/60HZ | HP200 | 103.000 |
| N90198360 | COOLER ASSY HP200/300 400V-50/60HZ | HP200 | 81.500 |
| N90228114 | CNTRWGHT ASSY | HP200 | 338.000 |
Related Articles
