PY cone crusher pare parts

TIME：2022-05-05

PY cone crusher pare parts

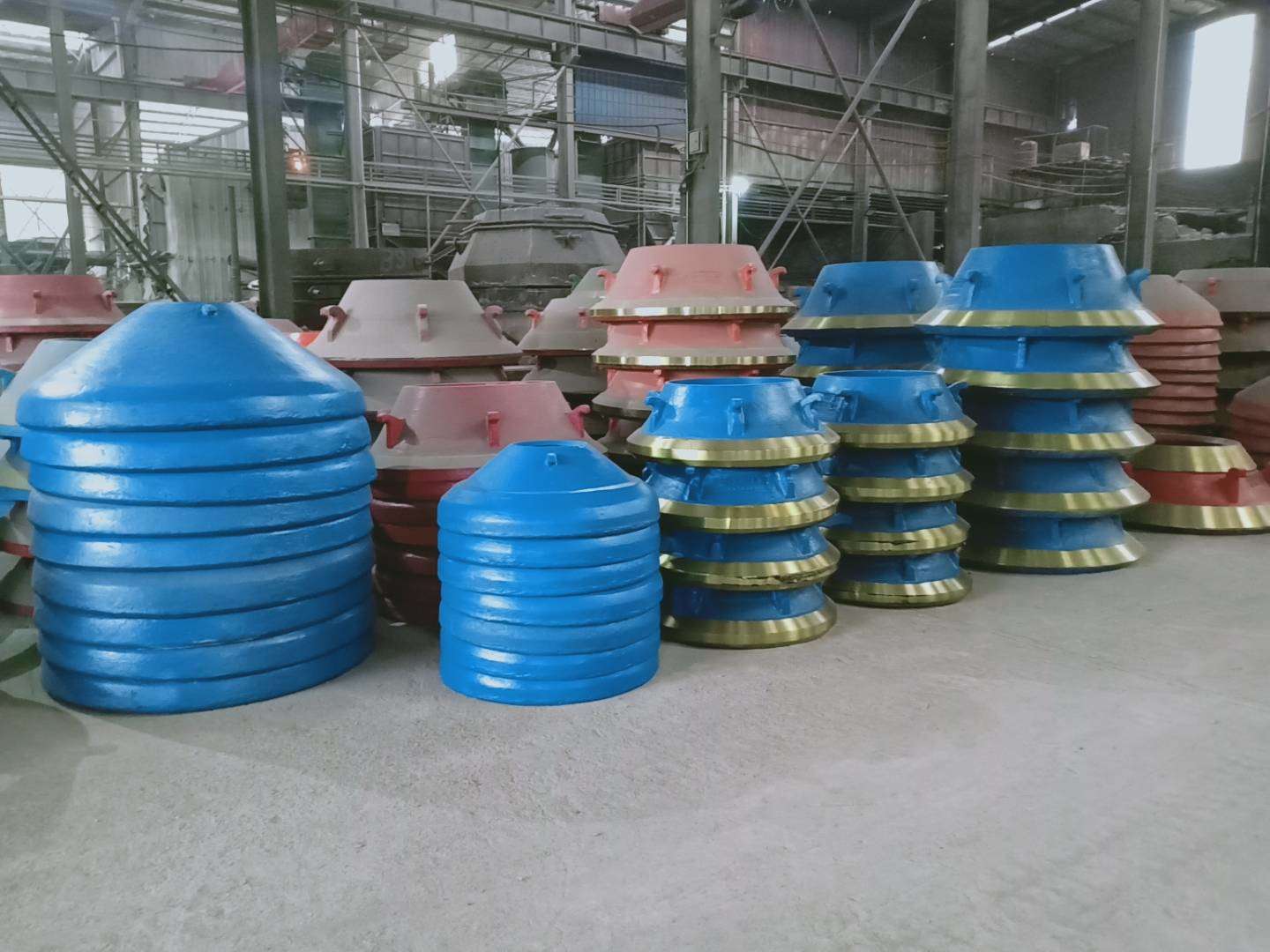

cone crusher spare parts include Moving cone liner Fixed cone liner，cutting ring，Spindle bushing，spring,gear，motor,ect.

PY Cone Crusher intoduction

Product introduction: Cone crusher is suitable for crushing various ores and rocks with medium and above hardness. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use. Its spring insurance system is an overload protection device, which can make foreign iron pieces pass through the crushing chamber without harming the machine. Two types of seals, dry oil or water, are used to isolate the stone powder from the lubricating oil and ensure reliable operation. The type of crushing cavity is determined by the use of the ore. The standard type is suitable for medium crushing; the medium type and short head type are suitable for fine crushing.

PY cone crusher pare parts Main Technical Parameters of Spring Cone Crusher

Model	Moving Cone Diameter (mm)	Feeding Opening Size (mm)	Discharging Opening Size (mm)	Max. Feeding Size (mm)	Capacity (mm)	Eccentric Rotating Speed (r/min)	Electric Motor Powder (kw)	Over Dimension (mm)
PYB-600	600	75	12-25	65	12-25	356	30	280013001700
PYD-600	600	40	2-13	35	5-23	356	30	280013001700
PYB-900	900	135	15-50	115	50-90	333	55	305016402350
PYZ-900		70	5-20	60	20-65
PYD900		50	3-13	50	15-50
PYB-1200	1200	170	20-50	145	110-168	300	110	415223002980
PYZ-1200		115	8-25	100	42-135
PYD-1200		60	3-15	50	18-105
PYB-1750	1750	250	25-50	215	280-480	245	160	602029484190
PYZ-1750		215	10-30	185	115-320
PYD-1750		100	5-15	85	75-230
PYD-2200	2200	350	30-60	300	590-1000	220	260-280	770534324842
PYZ-2200		275	10-30	230	200-580
PYD-2200		130	5-15	100	120-370

Note:This specification is just reference,any changes are subject to the Spring cone crusher products.
