Cone crusher introduction
Cone crusher is a crushing machine suitable for raw materials in metallurgy, construction, road construction, chemical and silicate industries. According to different crushing principles and product particle size, it is divided into many models. Crusher is widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries and many other sectors. The cone crusher has large crushing ratio, high efficiency, low energy consumption, and uniform product particle size. It is suitable for medium and fine crushing of various ores and rocks. The models are mainly divided into SMG series, spring type and HPC series, and their working principles and structures are introduced respectively. It also introduces the development history, working principle, composition, influencing factors, technical advantages, operation matters, common faults, inspection and maintenance of cone crushers in detail.

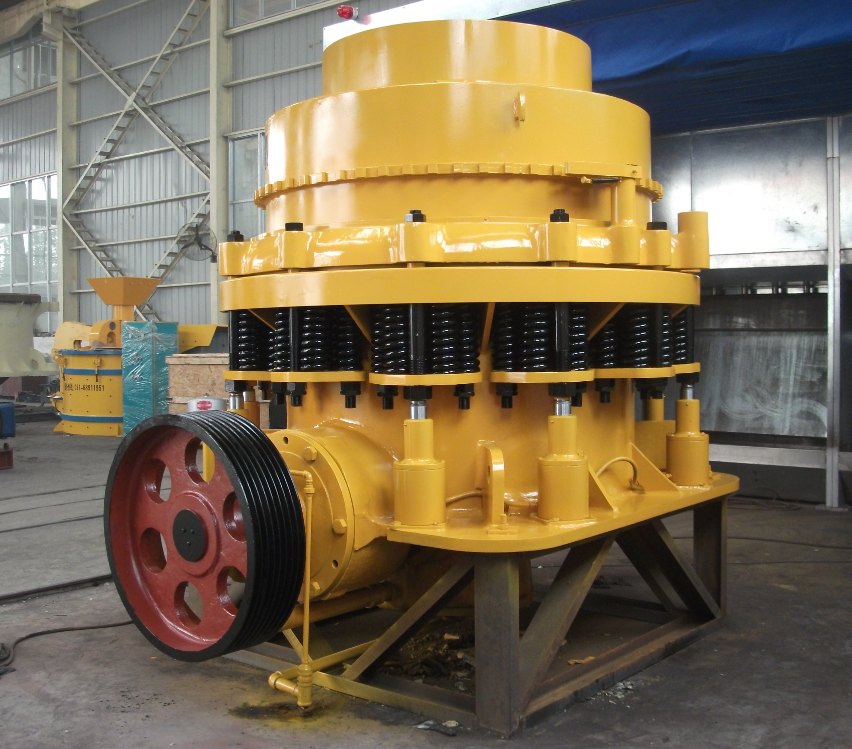

CS cone crusher price
With the continuous development of mining technology, cone crushers are also divided into several types, including spring cone crushers, rolling mortar cone crushers, hydraulic cone crushers and compound cone crushers according to their types; PY cone crusher, Simmons cone crusher, compound cone crusher, standard hydraulic cone crusher, single-cylinder hydraulic cone crusher and multi-cylinder hydraulic cone crusher and many other models. The hydraulic crusher is developed on the basis of digesting and absorbing various types of cone crushers with the international advanced level in the 1980s. It is clearly different in design from the structure of the traditional cone crusher and concentrates the main advantages of the various types of cone crushers known so far. It is suitable for fine crushing and ultra-fine crushing of hard rocks, ores, slag, refractory materials, etc.
Introduction to the structure of cone crusher: the structure of cone crusher mainly includes frame, horizontal shaft, moving cone, balance wheel, eccentric sleeve, upper crushing wall (fixed cone), lower crushing wall (moving cone), hydraulic coupling, Lubrication system, hydraulic system.
Model |
Movable Cone Diametermm (inch) |
Chamber Style |
Opening Side |
Closed Side |
Discharging Opening (mm) |
REV (r/min) |
Power (kw) |
Motor Model |
Capacity (t/h) |
Machine Size (mm) |
Max.Feeding (mm) |
CSB75 |
900 (3′) |
medium |
83 |
102 |
9~22 |
580 |
6-75 |
Y315S-6/75 |
45-91 |
2821×1880 ×2164 |
coarse |
159 |
175 |
13-38 |
59-163 |
CSD75 |
914 (3′) |
fine |
13 |
41 |
3~13 |
580 |
6-75 |
Y315S-6/75 |
27-90 |
2821×1880 ×2410 |
medium |
33 |
60 |
3~16 |
27-100 |
coarse |
51 |
76 |
6~19 |
65-140 |
CSB160 |
1295 (4 1/4′) |
fine |
109 |
137 |
13-31 |
485 |
6-185 |
Y355M2-6/185 |
109-181 |
2800×2342 ×2668 |
medium |
188 |
210 |
16-31 |
132-253 |
coarse |
216 |
241 |
19-51 |
172-349 |
CSD160 |
1295 (4 1/4′) |
fine |
29 |
64 |
3~16 |
485 |
6-160 |
Y355M1-6/160 |
36-163 |
2800×2342 ×2668 |
medium |
54 |
89 |
6~16 |
82-163 |
coarse |
70 |
105 |
10~25 |
109-227 |
CSB240 |
1650 (5 1/2′) |
fine |
188 |
209 |
16-38 |
485 |
6-240 |
|
181-327 |
3911×2870 ×3771 |
medium |
213 |
241 |
22-51 |
|
258-417 |
coarse |
241 |
268 |
25-64 |
|
299-635 |
CSD240 |
1650 (5 1/2′) |
fine |
35 |
70 |
5~13 |
485 |
6-240 |
|
90-209 |
3917×2870 ×3771 |
medium |
54 |
89 |
6~19 |
|
136-281 |
coarse |
98 |
133 |
10~25 |
|
190-336 |
CSB400 |
2134 (7′) |
fine |
253 |
278 |
19-38 |
435 |
6-400 |
|
381-726 |
5200×4300 ×4700 |
medium |
303 |
334 |
25-51 |
|
608-998 |
coarse |
334 |
369 |
31-64 |
|
870-1400 |
CSD400 |
2134 (7′) |
fine |
51 |
105 |
5~16 |
435 |
6-400 |
|
190-408 |
5200×4300 ×4700 |
medium |
95 |
133 |
10~19 |
|
354-508 |
coarse |
127 |
178 |
13-25 |
|
454-599
|
