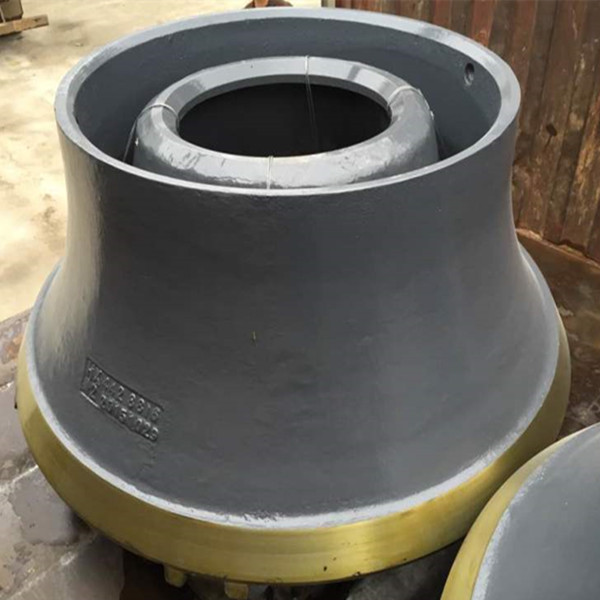

Sandvik cone crusher spare part

Large production capacity, high crushing efficiency and low energy consumption: the perfect combination of crushing stroke, crushing speed and laminated crushing principle greatly improves the production capacity and crushing efficiency. When the diameter of the big end of the moving cone is the same, the output is increased by more than 30%.

The laminated crusher cavity has excellent particle shape: it not only improves the crushing output and efficiency, but also improves the particle shape of the product, and the shape of the product is cube.

The design concept of constant cavity makes the service life of lining plate longer: through the optimal design of cavity, the control of constant discharge port is realized to ensure the particle size of products, and the service life of lining plate is increased by more than 20%.

The liner plate does not need filler, and the replacement is fast and convenient: the broken wall and rolling mortar wall do not need filler, so the replacement is very convenient and fast, which reduces the maintenance time and material cost.

The full-automatic control system ensures the safe operation of the equipment: the full-automatic control system provides user selection, which can continuously monitor the actual load inside the equipment and display various operation parameters in real time to ensure the safe operation of the equipment. Working principle of single cylinder hydraulic cone crusher

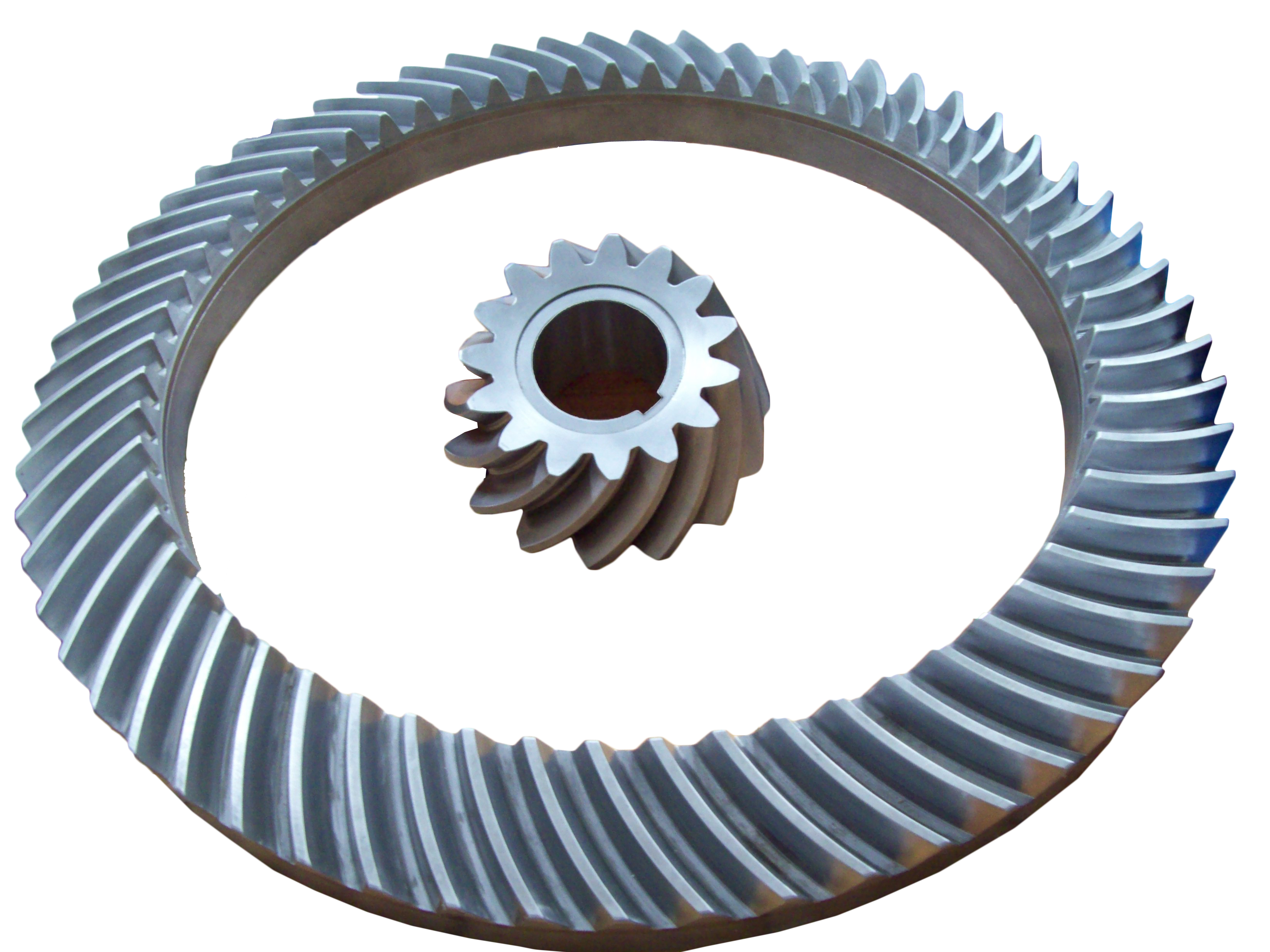

The motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric shaft sleeve to rotate through the gear, and then the eccentric shaft sleeve drives the moving cone to make circular motion, so as to realize continuous extrusion and crushing of stone. By adjusting the hydraulic cylinder at the bottom of the moving cone, the moving cone can move up and down, so as to conveniently adjust the size of the discharge port and the particle size of the product. At the same time, the hydraulic cylinder also provides iron passing protection function. When the iron block enters the crushing chamber, the moving cone will automatically fall and release the iron block to protect the crusher. After the iron block is discharged, the moving cone will automatically recover, and the equipment will return to normal working state and continue to crush.
