TIME：2022-07-31
| Part Number | Description | Crusher Type | Weight |
| 1001504357 | BSHG, OUTSIDE HEAD 2.000X1.500″NPT-CL15 | HP400 | 0.300 |
| 1001958050 | EQUAL TEE 8R6X-S | HP400 | 0.136 |
| 1002080430 | ELBOW 2062-4-4S | HP400 | 0.030 |
| 1002080450 | ELBOW 8 C5OX-S | HP400 | 0.160 |
| 1002098750 | PLUG 900598-8S | HP400 | 0.050 |
| 1003063291 | NUT-LOCK M8 BOLT, A=19, B=33, C=11, D=1 | HP400 | 0.100 |
| 1003801990 | GREASE FITTING CAP .188 IDX.375 ODX.375 | HP400 | 0.100 |
| 1005416095 | EXT. RETAIN. RING ASMEB18.27.1-NA1-375, | HP400 | 0.381 |
| 1007095250 | SNUBBER 25-1106B | HP400 | 0.340 |
| 1007249890 | V-RING SEAL TWVA01800-N6T50 | HP400 | 0.454 |
| 1017557051 | V-BELT SET 8V / 190 MATCHED SET OF 10 | HP400 | 30.390 |
| 1019559606 | BOLT LOCK | HP400 | 59.000 |
| 1019579055 | SCREW SQUARE HEAD M36X125/90 | HP400 | 1.500 |
| 1019579056 | SCREW SQUARE HEAD M36X150/90 | HP400 | 1.500 |
| 1019579057 | SCREW SQUARE HEAD M36X180/90 | HP400 | 1.900 |
| 1020053002 | BOWL | HP400 | 2,279.000 |
| 1021347700 | BRACKET ASSEMBLY | HP400 | 2.350 |
| 1021440875 | BRACKET | HP400 | 0.200 |
| 1022062210 | CNTRSHFT BUSHING | HP400 | 14.000 |
| 1022074069 | ECCENTRIC BUSHING | HP400 | 72.000 |
| 1022133692 | BUSHING FOR EXTERNAL MAIN FRAME PINS, S | HP400 | 2.000 |
| 1022147349 | HEAD BUSHING UPR | HP400 | 28.000 |
| 1022147350 | HEAD BUSHING LOW | HP400 | 56.000 |
| 1022815026 | ADJSTM CAP | HP400 | 488.000 |
| 1024709137 | TUBE | HP400 | 0.454 |
| 1031136180 | ECCENTRIC | HP400 | 530.000 |
| 1033781830 | MAIN FRAME | HP400 | 5,436.000 |
| 1035715064 | O-RING | HP400 | 1.000 |
| 1036803301 | GEAR | HP400 | 217.000 |
| 1036831195 | PINION | HP400 | 54.000 |
| 1038018156 | CNTRWGHT LINER | HP400 | 143.000 |
| 1038067401 | ARM GUARD | HP400 | 42.000 |
| 1044180249 | HOPPER UPR | HP400 | 149.000 |
| 1044180343 | HOPPER LOW | HP400 | 156.000 |
| 1044252539 | HOSE ASSY 3/8″ L=840 | HP400 | 0.500 |
| 1044252606 | HOSE ASSY 3/8″ L=1825 | HP400 | 1.100 |
| 1045376018 | CNTRSHFT BOX | HP400 | 280.000 |

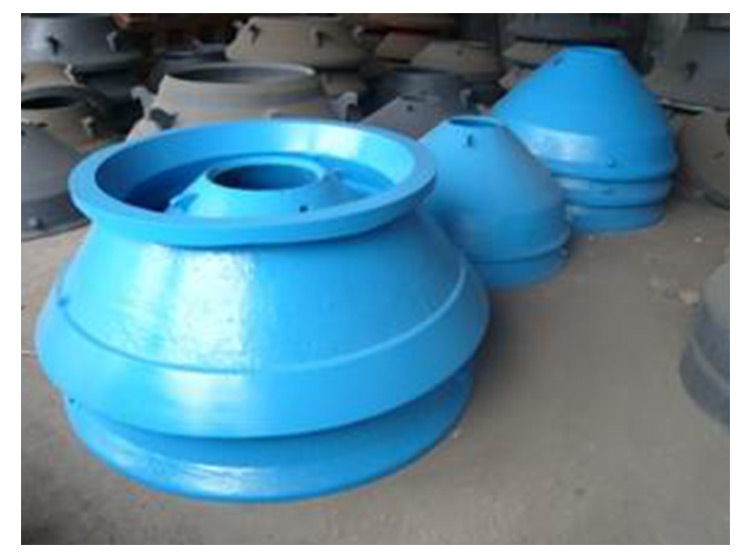

| 1048300031 | BOWL LINER SH C | HP400 | 1,177.000 |
| 1048300032 | BOWL LINER SH M | HP400 | 1,151.000 |
| 1048300035 | BOWL LINER SH M | HP400 | 1,151.000 |
| 1048300039 | BOWL LINER SH C | HP400 | 1,177.000 |
| 1048300043 | BOWL LINER SH EF | HP400 | 1,014.000 |
| 1050214580 | ELECTRIC MOTOR 7.5HP/1500RPM/213T FRM/22 | HP400 | 45.500 |
| 1054350830 | PIN | HP400 | 7.000 |
| 1055981158 | FEED PLATE | HP400 | 35.000 |
| 1056839401 | NUT LOCK | HP400 | 0.900 |
| 1057605158 | HEAD BALL | HP400 | 80.000 |
| 1057605169 | THRUST BRNG UPR | HP400 | 27.000 |
| 1057605172 | THRUST BRNG LOW | HP400 | 60.000 |
| 1059239508 | SHEAVE 19.0”OD, 8V, 12GRVS WITH QD-N BUS | HP400 | 173.000 |
| 1059239512 | MOTOR SHEAVE 22.4″OD, 8V, 12GRVS W / QD- | HP400 | 208.000 |
| 1061872992 | CLAMPING RING | HP400 | 533.600 |
| 1061873403 | ADJSTM RING | HP400 | 2,190.000 |
| 1061940191 | DUST SHELL | HP400 | 93.000 |
| 1062440048 | DRIVE GEAR | HP400 | 465.000 |
| 1062807443 | OIL FLINGER | HP400 | 13.700 |
| 1063084500 | PISTON SEAL | HP400 | 0.200 |
| 1063192847 | WEAR RING | HP400 | 0.454 |
| 1063437878 | BOWL ADAPTER RING | HP400 | 233.000 |
| 1063437879 | BOWL ADAPTER RING | HP400 | 183.000 |
| 1063437880 | BOWL ADAPTER RING | HP400 | 227.000 |
| 1063519849 | DUST SEAL | HP400 | 2.000 |
| 1063915541 | FRAME RING | HP400 | 25.000 |
| 1063915676 | TORCH RING | HP400 | 6.200 |
| 1064668564 | BAR FULCRUM | HP400 | 4.000 |
| 1065634357 | PISTON ROD | HP400 | 33.000 |
| 1065875316 | STUD | HP400 | 0.600 |
| 1067262601 | JACKSCREW | HP400 | 1.000 |
| 1068634887 | CNTRSHFT | HP400 | 118.000 |
| 1068863509 | MAIN SHAFT | HP400 | 710.000 |
| 1070516700 | SHIM | HP400 | 0.150 |
| 1070589782 | SHIM 0.5MM | HP400 | 0.300 |
| 1070589784 | SHIM 0.8MM | HP400 | 0.600 |
| 1070589786 | SHIM | HP400 | 1.400 |
| 1070589788 | SHIM 3MM | HP400 | 2.500 |
| 1073044086 | SPACER | HP400 | 0.700 |
| 1073814256 | SOCKET | HP400 | 101.000 |
| 1079143402 | PRSSR ACCUMULATOR | HP400 | 36.000 |
| 1080960065 | ECCENT LFTNG PLATE | HP400 | 85.000 |
| 1080960106 | HEAD LIFTING PLATE | HP400 | 21.000 |
| 1086342845 | WEDGE | HP400 | 3.000 |
| 1086342846 | WEDGE | HP400 | 2.400 |
| 1087729041 | WRENCH LOCKBOLT | HP400 | 49.000 |
| 1093040030 | TRAMP RELEASE CYL | HP400 | 212.500 |
| 1093040031 | PISTON ROD | HP400 | 54.000 |
| 1093040032 | CLEARING/ REL CIRC | HP400 | 6.000 |
| 1093040112 | TRAMP RELEASE ASSEMBLY | HP400 | 1,596.000 |
| 1093040116 | BOWL ASSY STD | HP400 | 2,774.200 |
| 1093040131 | MAIN FRAME ASSY STD | HP400 | 6,808.000 |
| 1093045000 | ECCENTRIC | HP400 | 846.000 |
| 1093100029 | ROT DTCTR SPEED MONITOR TRANSMITTER ASM | HP400 | 5.440 |
| 1094280065 | CLAMPING CYL ASSY | HP400 | 10.800 |
| 7001530524 | BOLT, HEXAGONAL ISO4014-M24X80-8.8-A3A | HP400 | 0.400 |
| 7001530622 | SCREW HEX ISO4017-M30X90-8.8-A3A | HP400 | 0.700 |
| 7001530623 | SCREW HEX ISO4017-M30X100-8.8-A3A | HP400 | 0.700 |
| 7001530880 | BOLT HEX ISO4014-M42X110-8.8-A3A | HP400 | 2.000 |
| 7001530931 | BOLT HEX ISO4014-M48X140-8.8-A3A | HP400 | 2.900 |
| 7001540156 | CAP SCRW HEXSCKTHD ISO4762-M10X30-12.9- | HP400 | 0.028 |
| 7001563048 | NUT HEX ISO4032-M48-8-A3A | HP400 | 1.000 |
| 7001619336 | ARALLEL PIN ISO8734-25X80-A-ST | HP400 | 0.300 |
| 7001624048 | WASHER L-48-ZIN-NFE27.611 | HP400 | 0.400 |
| 7001632010 | WASHER SPRING W10-NFE25.515-UNPLTD | HP400 | 0.010 |
| 7002002019 | BUSHING ISO49-N4-I-1 1/4X1-ZN-A | HP400 | 0.200 |
| 7002019014 | UNION ISO49-U12-4-ZN-A | HP400 | 4.800 |
| 7002063011 | ELBOW ISO49-G4/45°-4-ZN-A | HP400 | 3.500 |
| 7002101088 | PLUG PLASTIC 108/114,1, N100-1080 | HP400 | 1.600 |
| 7002118116 | CLAMP SX 14 242-262 | HP400 | 0.080 |
| 7002150040 | PUMP R1A6137G4A1C-198L/MIN | HP400 | 48.000 |
| 7002152735 | GEAR KIT | HP400 | 0.100 |
| 7002152883 | BRNG KIT SP5432 + SP5673 + SP5672 + P72 | HP400 | 0.100 |
| 7002154023 | COOLER 38KW PLAN A3-770 02154023-00 | HP400 | 145.000 |
| 7002154509 | FAN | HP400 | 0.000 |
| 7002154656 | COOLER 38KW | HP400 | 0.000 |
| 7002154721 | MOTOR SUPPORT | HP400 | 0.000 |
| 7002420048 | ELBOW ADAPTER M 1 7/8″-12UN JIC-M G1 1/ | HP400 | 1.170 |
| 7002480108 | LANTERN LMB 300/130DL12 | HP400 | 1.800 |
| 7002480303 | PRSSR ACCUMULATOR SBO 210-0.16E1/112B-2 | HP400 | 0.860 |
| 7002480419 | WRNG | HP400 | 6.800 |
| 7002480755 | CIRCUIT SELECTOR WVE-R1/4-01X, 710126 | HP400 | 0.020 |
| 7002480785 | PUMP 1PF2G24X/016 RH30MO+G24X/004 RH30M | HP400 | 5.600 |
| 7003234741 | V-BELT PULLEY MGT 450-SPC-12, N 125 | HP400 | 118.000 |
| 7003234742 | PULLEY DP 500-12 SPC (DOUILLE 125) | HP400 | 141.000 |
| 7003241824 | HUB 160/120 | HP400 | 25.000 |
| 7003460514 | COUPLING SR30/38/31.75/7.95 | HP400 | 1.200 |
| 7005241009 | CABLE GLAND V-TEC PG9, 2022-61-3 | HP400 | 0.006 |
| 7005241011 | CABLE GLAND V-TEC PG11, 2022-62-1 | HP400 | 0.009 |
| 7005255174 | BUTTON ELEMENT ZB2 BV04 | HP400 | 0.000 |
| 7005255215 | CONTACT BLOCK ZB2BE101 | HP400 | 0.015 |
| 7005255227 | PUSH BUTTON ZB2BP5 | HP400 | 0.030 |
| 7005255231 | SW ZB2BT2, PUSH-BUTTON, BLACK | HP400 | 0.000 |
| 7005255892 | PUSH BUTTON ZB2BP6 | HP400 | 0.100 |
| 7010303504 | HYDR ADAPTER G2AX24SAE | HP400 | 1.200 |
| 7015778304 | BUSHING GROOVED | HP400 | 2.300 |
| 7016200114 | CNTRWGHT WITH LEAD | HP400 | 739.000 |
| 7022300500 | DRILLED BLOCK | HP400 | 1.800 |
| 7029200027 | HYDRAULIC POWER UNIT | HP400 | 150.000 |
| 7030164610 | SUB-FRAME | HP400 | 1,316.500 |
| 7030164788 | SUPPORT | HP400 | 683.000 |
| 7030164790 | MOMENT SUPPORT | HP400 | 783.000 |
| 7033100515 | COLLAR 10 LITRES | HP400 | 1.500 |
| 7044453034 | HYDR HOSE HP 9,5 L=2100 | HP400 | 1.200 |
| 7044453044 | HYDR HOSE HP 9,5 L=12000 | HP400 | 8.600 |
| 7055208382 | BOWL LINER STD F | HP400 | 1,413.000 |
| 7055208392 | BOWL LINER STD F | HP400 | 1,413.000 |
| 7055208395 | BOWL LINER SH FINE | HP400 | 1,159.000 |
| 7055308282 | MANTLE SH F/M/C | HP400 | 1,228.000 |
| 7055308381 | MANTLE STD F | HP400 | 1,270.000 |
| 7055308387 | MANTLE STD F | HP400 | 1,270.000 |
| 7055308388 | MANTLE SH F/M/C | HP400 | 1,228.000 |
| 7055308389 | MANTLE SH EF | HP400 | 996.000 |
| 7082404311 | HEAD | HP400 | 1,686.000 |
| 7085728300 | CONICAL HOPPER | HP400 | 208.900 |
| 7086124756 | TUBE | HP400 | 8.800 |
| 7086403764 | HOSE 4″ LG.4000 | HP400 | 18.000 |
| 7090058015 | HEAD ASSEMBLY STD | HP400 | 1,892.400 |
| 7090228112 | CNTRWGHT ASSY | HP400 | 885.000 |
| 7090228301 | ECCENTRIC ASSY STD | HP400 | 1,730.000 |
| 10PW021551 | COVER PLANETARY DRIVE, P/N 13-004-1212 | HP400 | 6.350 |
| MM0204776 | TRANSFORMER POWER TRANSFORMER TIANJIN PU | HP400 | 0.000 |
| MM0209389 | MOTOR | HP400 | 0.000 |
| MM0213039 | MOTOR Y2-355L-4-315KW | HP400 | 0.000 |
| MM0216283 | BOLT QM30 100/75 | HP400 | 0.000 |
| MM0216284 | BOLT M36 125/90 | HP400 | 0.000 |
| MM0225903 | PC AND PRINTER V-BELT(3PCS/SET) 12XSPC 5 | HP400 | 0.000 |
| MM0229153 | GASKET SET SKR6001 | HP400 | 0.100 |
| MM0250509 | COOLING FAN 3318637 | HP400 | 7.000 |
| MM0259545 | SQUIRR CAGE MOTOR 315KW-6000V-50HZ-400- | HP400 | 3,500.000 |
| MM0278227 | V-BELT PULLEY SPC 475/12 | HP400 | 130.000 |
| MM0279586 | V-BELT SET 12XSPC 5730 | HP400 | 25.800 |
| MM0310417 | CIRCUIT BREAKER C65N2PD2, 17937 | HP400 | 0.100 |
| MM0310421 | CIRCUIT BREAKER C65H-DC 1P C6A, MGN22054 | HP400 | 0.200 |
| MM0310436 | CIRCUIT BREAKER C65H-DC 1P C1A, MGN22050 | HP400 | 0.200 |
| MM0324572 | PCKG LUBR SYSTEM AIR COOLED/5HP/1500RPM | HP400 | 0.000 |
| MM0324574 | HYDR POWER UNIT ORDER DWG/380V/3PH/50HZ | HP400 | 0.000 |
| MM0342481 | V-BELT 12XSPC 5730-BANDED | HP400 | 25.800 |
| MM0342657 | BOWL LINER STD F OS | HP400 | 1,637.950 |
| MM0342658 | MANTLE STD F OS | HP400 | 1,476.740 |
| MM0352214 | PRSSR REL VALVE ZDBY6DB2-1X/315V/60, 13 | HP400 | 1.235 |
| N01538097 | CAP SCRW HEXSCKTHD ISO4762-M5X40-8.8-UNP | HP400 | 0.008 |
| N01602095 | ECCENTRIC RET RING NFE22163-95X3 | HP400 | 0.040 |
| N01605503 | PARALLEL KEY B32X18X195 NF E 22-177 | HP400 | 1.000 |
| N01612087 | SPLIT PIN ISO1234-6.3X125-ST | HP400 | 0.030 |
| N01619330 | PIN ISO8734A-25X50-ST | HP400 | 0.200 |
| N01631120 | WASHER M20-NFE25.511 | HP400 | 0.050 |
| N01632016 | WASHER SPRING W16-NFE25.515-UNPLTD | HP400 | 0.010 |
| N01632024 | WASHER SPRING W24-NFE25.515-UNPLTD | HP400 | 0.022 |
| N02111202 | FLANGE GFS10890G-2″-SERIE 3000 | HP400 | 2.100 |
| N02125014 | THERMOMETER PH 2050_0/120C + FAR._P63-R | HP400 | 0.100 |
| N02125804 | PRESSURE SW XML-A160D2S11 | HP400 | 0.500 |
| N02125849 | CAPILLARY SMS20-U1/4-U1/4-300-B | HP400 | 0.100 |
| N02149103 | COUPLING HOUSING TH3-127A | HP400 | 0.600 |
| N02150051 | PUMP KP40.109D0-34S8-LMG/ME-N-CSC (158L | HP400 | 32.000 |
| N02150052 | PUMP KP40.133D0-34S8-LMG/ME-N-CSC (194L | HP400 | 33.200 |
| N02152773 | GASKET SET 62055460 | HP400 | 0.040 |
| N02154583 | SQUIRR CAGE MOTOR 2.2KW(3HP)-220/480V-5 | HP400 | 25.000 |
| N02154768 | RADIATOR OK-EL10/3.0, 3081143 | HP400 | 64.400 |
| N02154803 | COOLER OK-EL10L/3.0/M/A/1 | HP400 | 145.000 |
| N02405211 | ADAPTER G202702-4-4S | HP400 | 0.060 |
| N02407152 | CNNCTN MALE GG110-NP16-12 | HP400 | 0.170 |
| N02408350 | ELBOW ADAPTER 45° 16V3MXS | HP400 | 0.257 |
| N02411031 | ADAPTER GG197-NP04.04 | HP400 | 0.050 |
| N02415007 | ADAPTER GG106-NP04-04 | HP400 | 0.035 |
| N02420226 | ELBOW 16V40MXS | HP400 | 0.360 |
| N02429056 | PLUG 900598-6S | HP400 | 0.036 |
| N02445623 | SPARE PARTS KIT BLADDER KIT, IHV 10L-33 | HP400 | 2.500 |
| N02482101 | PRSSR REL VALVE ZDBK6VB2-1X/210V, 135 B | HP400 | 0.100 |
| N02482102 | PRSSR REL VALVE RDBA-LCN, 320 BAR | HP400 | 0.100 |
| N02495441 | PROTECTION LB1-LC03L22 | HP400 | 0.470 |
| N02704095 | V-RING SEAL 95A NITRILE | HP400 | 0.050 |
| N03241795 | HUB MGT125/95 KEY 25 | HP400 | 13.000 |
| N03241801 | TAPERED SLEEVE MGT125/120 | HP400 | 13.000 |
| N03460528 | COUPLING 31.75/38 ND86H.D40+R82+ND86B | HP400 | 0.400 |
| N05228089 | ACCELEROMETER CMPT2310 | HP400 | 0.450 |
| N05256130 | ELCTRC SW E2102002 | HP400 | 0.010 |
| N10600203 | COOLER OK-EL10L/3.1/M/A/1 | HP400 | 145.000 |
| N21900352 | MAIN FRAME LINER HP 400 | HP400 | 396.000 |
| N22102700 | CNTRSHFT GRD | HP400 | 80.000 |
| N28000794 | PROTECTION COVER | HP400 | 14.200 |
| N29201795 | DRILLED BLOCK HP200/300/400 | HP400 | 50.000 |
| N35800601 | SOCKET LINER | HP400 | 68.000 |
| N41060200 | BOLT LOCK | HP400 | 45.000 |
| N53001006 | SEAL LG= 2040 | HP400 | 0.060 |
| N53001200 | GASKET KIT | HP400 | 4.000 |
| N55208398 | BOWL LINER STD C | HP400 | 1,445.000 |
| N55208399 | BOWL LINER STD COARSE | HP400 | 1,445.000 |
| N55208522 | BOWL LINER STD C | HP400 | 1,389.000 |
| N55208523 | BOWL LINER STD EC | HP400 | 1,389.000 |
| N55208526 | BOWL LINER STD M | HP400 | 1,387.000 |
| N55308511 | MANTLE STD M/C/EC | HP400 | 1,190.000 |
| N55308512 | MANTLE STD M/C/EC | HP400 | 1,190.000 |
| N66000228 | MOUNTING PLATE | HP400 | 45.000 |
| N70000263 | ADAPTER | HP400 | 0.200 |
| N86401299 | HYDR HOSE 16/16 L.2100 | HP400 | 4.400 |
| N86402805 | FLEXIBLE HOSE 2″ LG.4000 | HP400 | 13.900 |
| N86402807 | FLEXIBLE HOSE 2″ LG.1154 | HP400 | 9.400 |
| N86402808 | FLEXIBLE HOSE 2″ LG.350 | HP400 | 6.000 |
| N90018011 | CNTRSHFT ASSY STD POSITION BUSHING AT 6 | HP400 | 593.800 |
| N90155811 | RELEASE KIT | HP400 | 32.300 |
| N90198204 | BASE STD | HP400 | 83.300 |
| N90198341 | AIR COOLER INST | HP400 | 185.700 |
| N90198342 | AIR COOLER INSTALLATION | HP400 | 245.500 |
| N90198369 | AIR COOLER INST | HP400 | 185.500 |
| N90198410 | AIR COOLER INST VOLTAGE 1: HP400-500 UN | HP400 | 245.500 |
| N90198414 | AIR COOLER INST | HP400 | 185.500 |
| N90198707 | DUST ENCAPSUL ASSY STD | HP400 | 59.900 |
Related Articles
