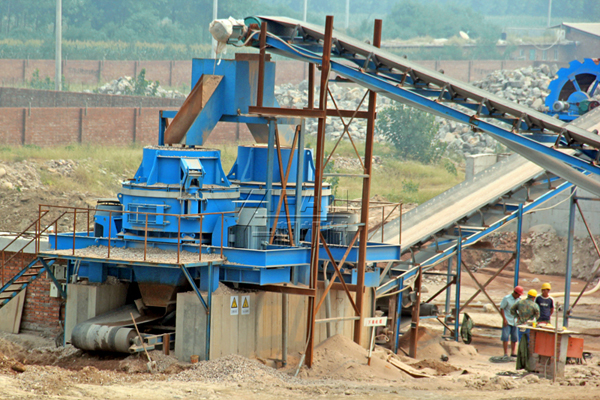

Quartz sand production line

Quartz sand production line,Quartz stone has a wide range of uses. It is mainly used for acid refractory bricks in metallurgical industry. Due to its very stable chemical and physical properties, after processing, it meets the standard of building sand and can be used as natural sand in construction, roads, hydropower and other industries.

1、 In the processing process of quartz dry sand production line, quartz stone is evenly sent to the jaw crusher for coarse crushing through the vibrating feeder, and then into the cone crusher for fine crushing. If you want higher specification products, you need to select the sand making machine and then crush the ultra-fine particle. You can adjust the discharge particle size according to the production needs to obtain the required finished products.

2、 Crusher suitable for processing quartz stone according to the process of quartz stone dry sand production line, there are three types of crushers commonly used for crushing quartz stone: jaw crusher, cone crusher and impact crusher. Their adaptability to quartz stone will be introduced one by one below.

(1) Jaw crusher

The jaw crusher is mainly used for the head breaking and coarse crushing link in the quartz dry sand production line. It can meet the crushing of various materials with particle size no more than 1200mm, compressive strength no more than 320MPa and discharge particle size between 10-350mm. The jaw crusher has large crushing ratio and strong crushing capacity. The "V" deep cavity and curved extrusion make the material fully stressed in the crushing cavity and the product particle size is uniform.

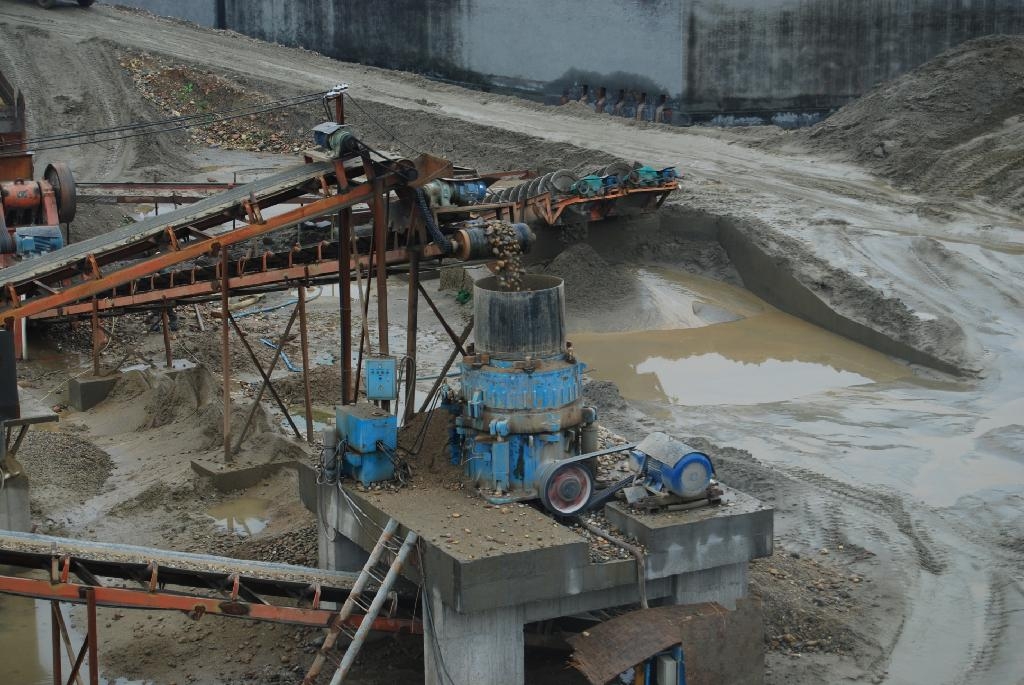

(2) Cone crusher

Common medium and fine crushing equipment include cone crusher and impact crusher. Due to the great hardness and strength of quartz stone, its hardness can reach grade 7, and the compressive strength is also about 200-300mpa. It is more suitable to use the cone crusher with laminated crushing principle, high wear-resistant materials, strong wear resistance and low failure rate.

(3) Impact crusher

The impact crusher is also known as the impact sand making machine, which is mainly used for three-stage sand making and shaping. It mainly adopts the working principles of "stone beating stone" and "stone beating iron". The new sand making equipment vsi6x sand making machine and VSI sand making machine can combine the two principles, which can not only make sand, but also shape, and greatly improve the quality of the finished product. The finished product has cubic particle shape, less needle and flake content, uniform particle size and reasonable grading. It is a high-yield Environmentally friendly sand making equipment.
