Hard rock crusher

Hard rock crusher,Basalt, diabase, granite, limestone, river pebble and other stones are materials with high hardness and high silicon content. In the actual crushing operation, they are difficult to crush or with high crushing cost. Generally speaking, basalt and diabase are hard and tough materials, granite is hard and brittle materials, and the hardness of river pebbles is relatively low, but the silicon content is high. Therefore, the crushing process of these materials should be designed reasonably, and the production cost of the production line should be considered while considering the investment cost of the crushing project. In the actual crushing operation, the typical lamination equipment configuration is the process configuration of jaw crusher and cone crusher.

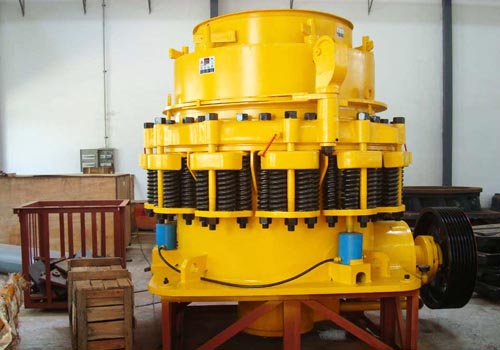

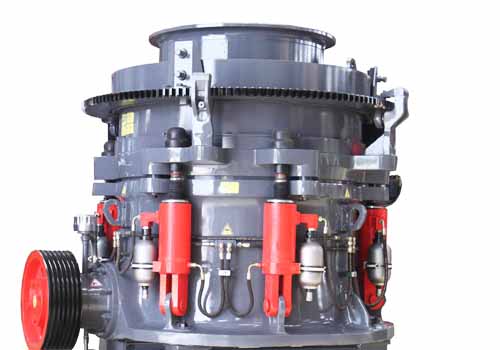

HPT series multi cylinder hydraulic cone crusher adopts multi cylinder fixed main shaft, high-speed layer crushing chamber, lining plate free backing material and full hydraulic operation.

When the HPT series multi cylinder hydraulic cone crusher works, the motor drives the transmission shaft of the equipment to rotate through the belt pulley and V-belt. The transmission shaft drives the eccentric sleeve to rotate around the main shaft through the large and small bevel gears. The eccentric sleeve drives the moving cone to swing, so that the moving cone and the fixed cone sometimes approach and sometimes far away from the rolling mortar wall. The materials are continuously crushed by extrusion and impact in the crushing cavity formed by the rolling mortar wall and crushing wall, and the crushed materials are discharged from the lower part.
