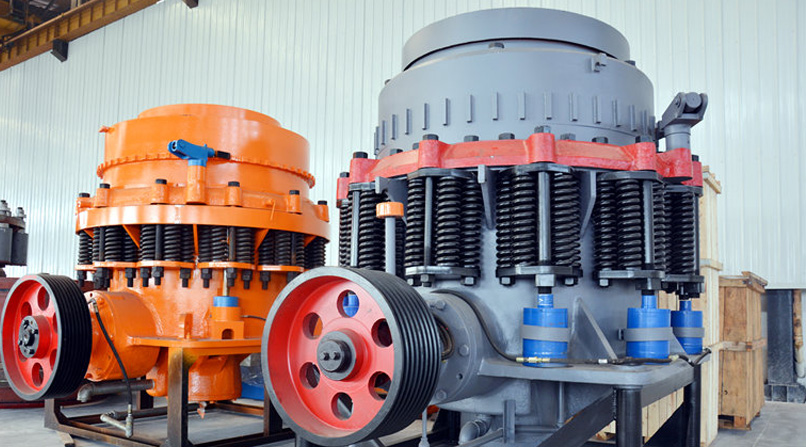

SMCC Cone Crusher



SMCC Cone Crusher，There are generally four types of Standard Cone Crushers: the SMCC Standard or Coarse type, the SMCF Fine or Medium type, the SMCS Short Head type & SMCSS Super Fine type. All four types are designed for secondary or tertiary crushing purposes both in stationary and portable applications for highly abrasive materials.



Features:



The spring-loaded release system allows any uncrushable material to pass through without causing any damage.

The lubrication unit is interlocked with the main motor for additional safety as a standard equipment.

A rib liner is provided inside the bottom section of the frame to help protect it from wear.

Model No.	Size (in/type)	Max Feed Opening (in/mm)	Min Discharge Opening (in/mm)	Rotation (RPM)	Motor Power HP (kW)	Weight (lbs/kg)
SMCC600	24 / Coarse Liner	3 3/4in / 95mm	7/16in / 10mm	630	50-60 / 37-45	11,660 / 5,300
SMCF600	24 / Fine Liner	2 3/4in / 72mm	1/4in / 6mm	630	50-60 / 37-45	11,660 / 5,300
SMCC1000	40 / Coarse Liner	6 1/2in / 160mm	1/2in / 13mm	630	120-150 / 90-110	23,760 / 10,800
SMCF1000	40 / Fine Liner	4 1/2in / 115mm	7/16in / 10mm	630	120-150 / 90-110	23,760 / 10,800
SMCS1000	40 / Short Head	3in / 80mm	5/16in / 8mm	630	120-150 / 90-110	23,122 / 10,510
SMCSS1000	40 / Ultra-Fine Shorthead	2in / 50mm	1/4in / 6mm	630	120-150 / 90-110	23,122 / 10,510
SMCC1150	45 / Coarse Liner	7in / 180mm	1/2in / 13mm	610	150-175 / 110-132	29,773 / 13,533
SMCF1150	45 / Fine Liner	5in / 130mm	7/16in / 10mm	610	150-175 / 110-132	29,773 / 13,533
SMCS1150	45 / Short Head	3 1/2in / 90mm	7/16in / 10mm	610	150-175 / 110-132	29,773 / 13,533
SMCSS1150	45 / Ultra-Fine Shorthead	2 1/2in / 60mm	1/4in / 6mm	610	150-175 / 110-132	29,773 / 13,533
SMCC1300	51 / Coarse Liner	8in / 200mm	5/8in / 16mm	610	175-215 / 132-160	49,060 / 22,300
SMCF1300	51 / Fine Liner	6in / 150mm	1/2in / 13mm	610	175-215 / 132-160	49,060 / 22,300
SMCS1300	51 / Short Head	4in / 102mm	7/16in / 10mm	610	175-215 / 132-160	49,060 / 22,300
SMCSS1300	51 / Ultra-Fine Shorthead	2 3/4in / 70mm	5/16in / 8mm	610	175-215 / 132-160	49,060 / 22,300
SMCC1370	54 / Coarse Liner	8 1/2in / 215mm	3/4in / 19mm	610	250-295 / 185-220	57,860 / 26,300
SMCF1370	54 / Fine Liner	6 1/2in / 160mm	5/8in / 16mm	610	250-295 / 185-220	57,860 / 26,300
SMCS1370	54 / Short Head	4 1/2in / 115mm	1/2in / 13mm	610	250-295 / 185-220	57,860 / 26,300
SMCSS1370	54 / Ultra-Fine Shorthead	3in / 76mm	5/16in / 8mm	610	250-295 / 185-220	57,860 / 26,300
SMCC1500	60 / Coarse Liner	9 1/4in / 235mm	7/8in / 22mm	560	250-300 / 185-225	83,050 / 37,750
SMCF1500	60 / Fine Liner	6 3/4in / 175mm	3/4in / 19mm	560	250-300 / 185-225	83,050 / 37,750
SMCS1500	60 / Short Head	5in / 130mm	1/2in / 13mm	560	250-300 / 185-225	83,050 / 37,750
SMCSS1500	60 / Ultra-Fine Shorthead	3 1/2in / 90mm	7/16in / 10mm	560	250-300 / 185-225	83,050 / 37,750
SMCC1680	66 / Coarse Liner	10 1/2in / 267mm	7/8in / 22mm	560	335-400 / 250-300	97,460 / 44,300
SMCF1680	66 / Fine Liner	8in / 203mm	5/8in / 16mm	560	335-400 / 250-300	97,460 / 44,300
SMCS1680	66 / Short Head	5 1/2in / 140mm	1/2in / 13mm	560	335-400 / 250-300	97,460 / 44,300
SMCSS1680	66 / Ultra-Fine Shorthead	3 3/4in / 95mm	7/16in / 10mm	560	335-400 / 250-300	97,460 / 44,300
