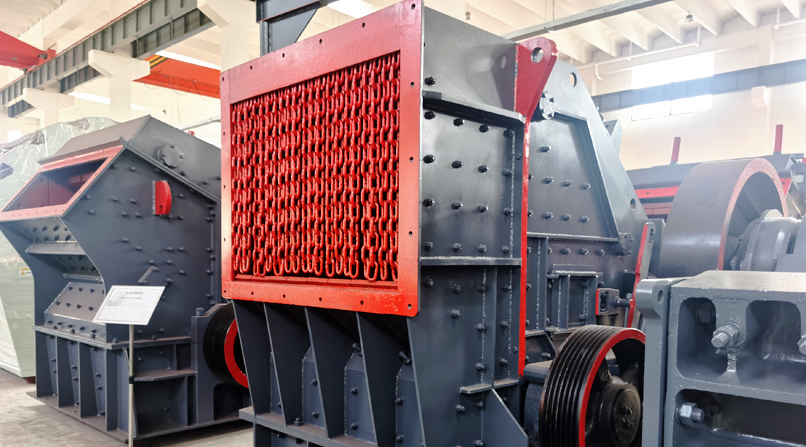

European impact crusher

Introduction to European impact crusher


The main difference between European impact crusher and ordinary impact crusher lies in the feed port. The feed port of large-diameter impact crusher is widened and enlarged, which can crush larger stones and improve the crushing efficiency. It is widely used in building materials, ore crushing, transportation, energy, chemical industry and other industries for medium and fine crushing of materials. Its discharge particle size can be adjusted and the crushing specifications are diversified.




Advantages and characteristics of European impact crusher


Wide adjustment range and diversified crushing specifications

European impact crusher has large feed, large crushing ratio, adjustable discharge particle size and diversified discharge specifications.



Energy saving and stable operation

European impact crusher has large crushing chamber design, high production efficiency, stable operation, energy saving and high yield.



Low wear of wearing parts and long service life

The wear of the plate hammer of the impact crusher only occurs on the side facing the material. When the rotor rotates, the material will fall to the surface of the plate hammer (striking surface). The back and sides of the plate hammer are not worn, and even the wear on the side facing the material is very small.



Simple structure, easy maintenance

The structure design of the European version impact crusher is very simple, which is convenient for stone crushing and later maintenance and repair.



Working principle of European version impact crusher

The European version impact crusher is based on the "stone hitting iron" crushing principle. The motor drives the rotor to rotate, and the rotor drives the plate hammer on the rotor to rotate. After the stone enters the crushing chamber of the impact crusher, it is hit and crushed by the high-speed rotating plate hammer. The huge impact force causes the stone to hit the impact liner, and then rebounded back to the plate hammer crushing area by the impact liner. After repeated impact crushing, impact crushing, and friction crushing, the stone that finally meets the discharge particle size is discharged from the discharge port. The larger particle stone that does not meet the discharge particle size requirements continues to be crushed until the finished product discharge requirements are met.

Technical Parameters

Model	Input size(mm)	Maxinput Size(mm)	Capacity(t/h)	power(kw)	Weight(kg)
SM150	820X980	≤500	100-200	90-200	12000
SM250	960X1360	≤700	200-400	180-250	17000
SM350	1050X1700	≤800	300-500	200-400	24000
SM450	1350X1950	≤900	350-580	220-440	29600
