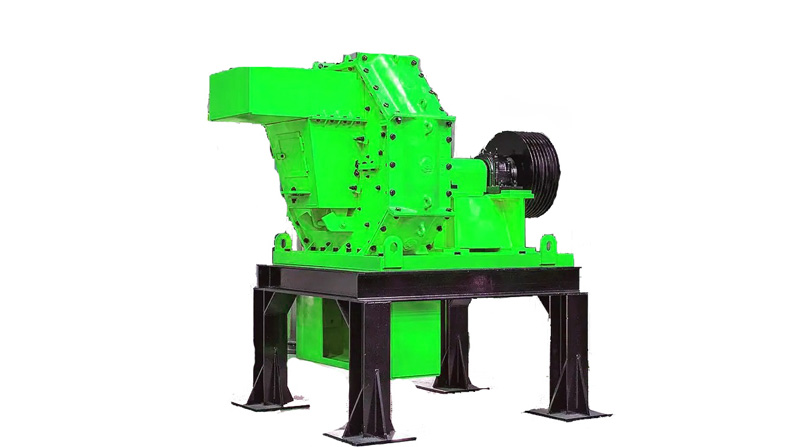

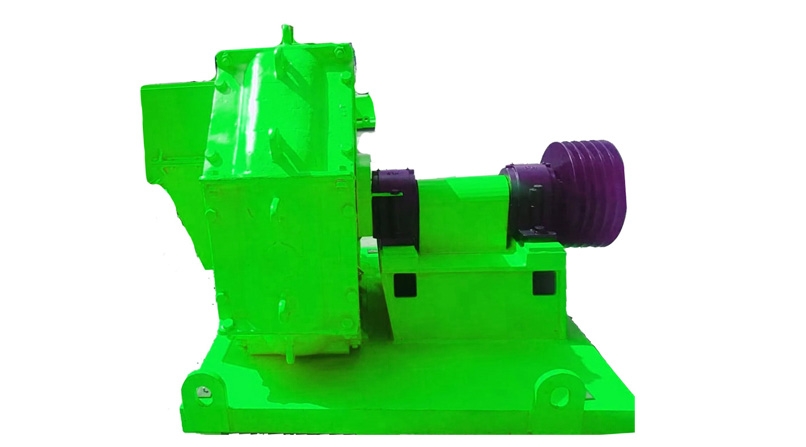

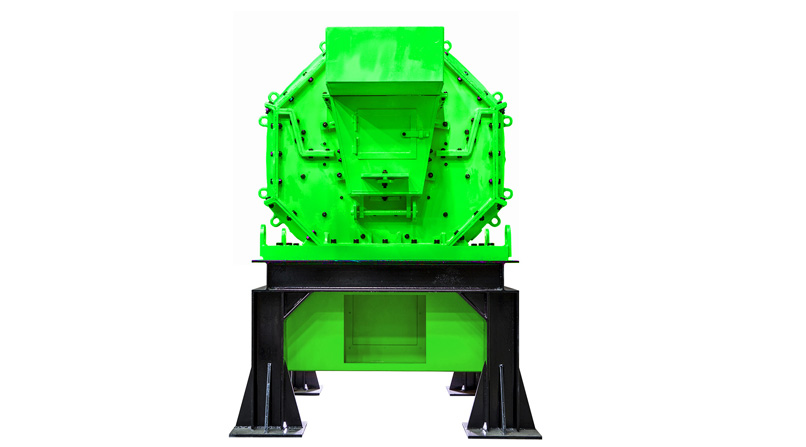

Centrifugal Impact Crusher

Feed particle size: 90-250mm



Production capacity: 90-300 TPH



Scope of application: used in building materials, chemicals, highways, mining, highways, high-speed railways, high-rise buildings, etc.



Processing materials: river pebble, granite, basalt, iron ore, limestone, calcite, quartz stone, diabase, etc.



Centrifugal Impact Crusher, also known as impact crushers, are mostly used in sand and gravel production lines and stone production lines. The sand making machine can crush soft or medium hard and extremely hard materials, and can also process and shape the materials. Sand making machines have been widely used in cement, various ores, refractory materials, emery, quartz stone, river pebbles, limestone, calcite, glass raw materials, mechanical building stones, bauxite clinker and gold slag. The production efficiency of high-hard, extra-hard and wear-resistant materials such as sintered bauxite is particularly high.



Centrifugal Impact Crusher Performance and Features:



1. The sand making machine integrates three crushing modes, and can continuously work for 720 hours.

2. Higher crushing chamber, greater crushing impact.

3. During the parts and material procurement, production and processing, the quality is strictly controlled. Wearing parts is optimally allocated for longer service life.

4. Hydraulic autonomous system: convenient maintenance, high performance, low failure rate.

5. The whole frame adopts elastic reinforcement technology, eliminating the problems like easy fracture of motor frame.



Specifications of Vertical Shaft Impact Crusher

Model		SHM765	SHM975	SHM1145	SHM1315
Capacity (t/h)
	Fed at center	70-90	90-125	150-200	200-300
Max. feed size (mm)	Soft	<90	<125	<180	<250
	Hard	<90	<125	<180	<250
Rotation speed (r/min)		1400-1500	1100-1200	900-1000	800-900
motor power (kw)		75	110	160	220
Outline dimensions LxWxH (mm)		2180 x 1525x 1282	2510x 1676x 1586	2945 x 1750 x 1659	3375 x 2080 x 1995
Weight (t)		5	7.5	9.5	12.6
Power supply		380v; 50Hz

Note:This specification is just reference,any changes are subject to the Centrifugal  shaft impact crusher products.
