cone crusher parts


cone crusher partsCone Crusher parts

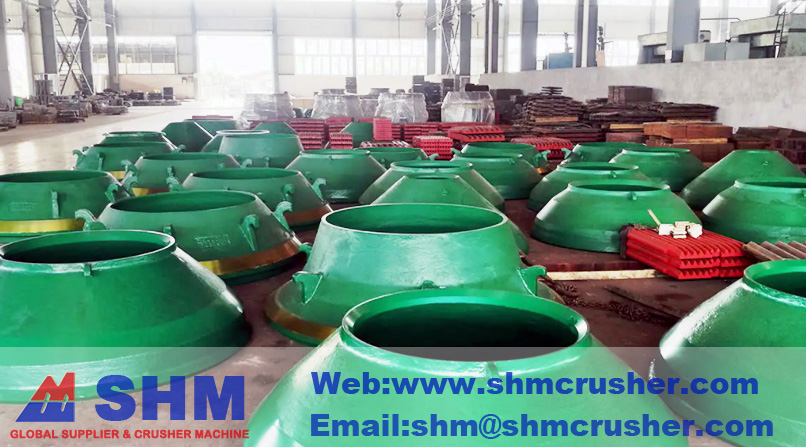

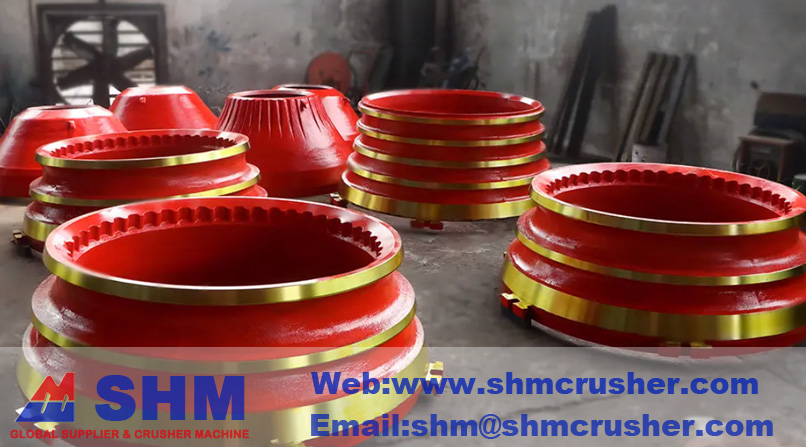

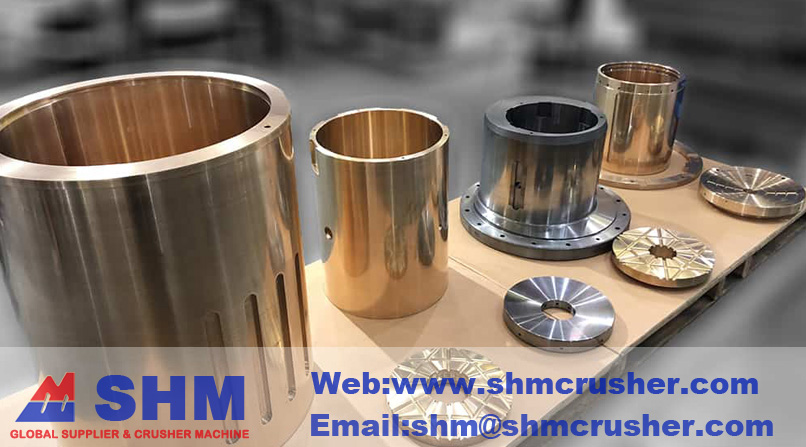

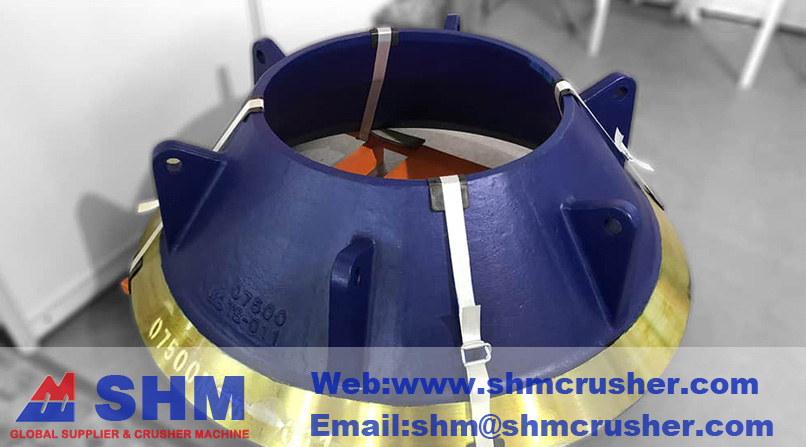

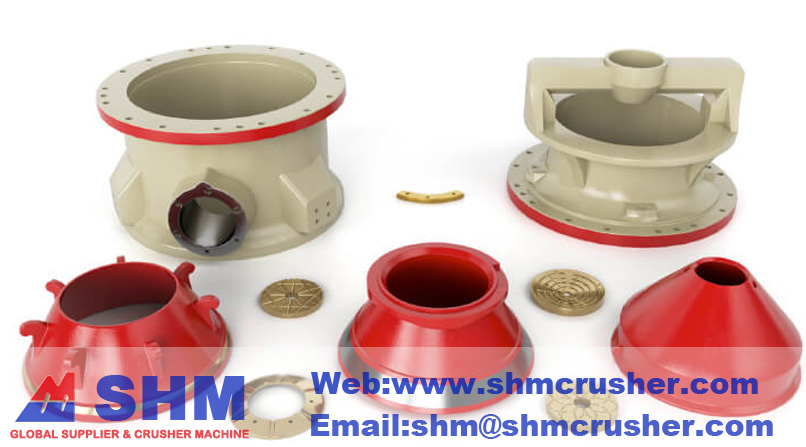

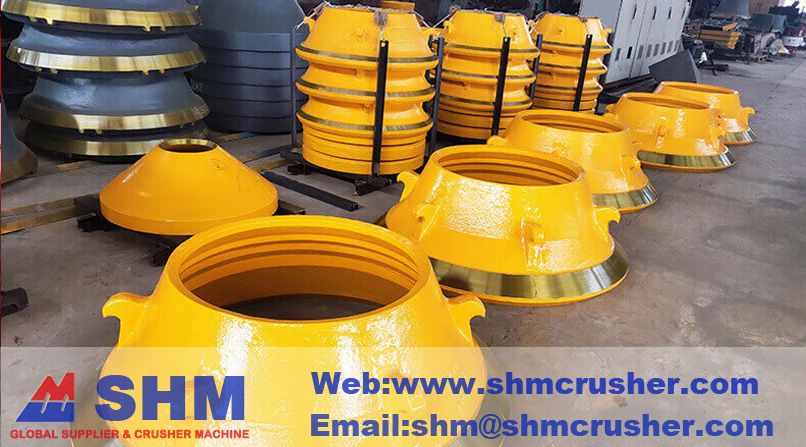

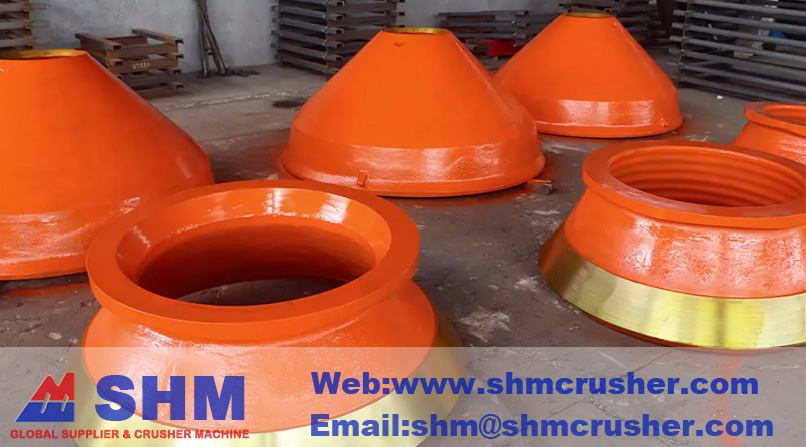

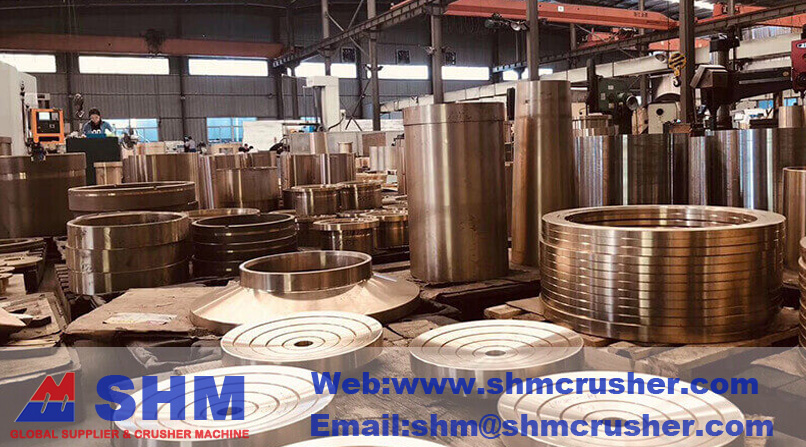

Cone crusher is widely used in metallurgy, construction, mining and other industries, can be used as two broken or three, four broken. Hydraulic cone crusher, composite cone crusher, cone crusher various consumable parts collectively referred to as cone crusher parts. Our foundry supplies many brands cone crusher wear parts, such as con liner, bowl liner…Also, we can manufacture the parts which you send us the drawings.
cone crusher parts cone crusher parts

There are some common kinds of cone crusher parts:

Mn14 Cone Crusher Wear Parts

Mn14, which have high tensile strength, plasticity and toughness and non-magnetic, even if the parts wear to thin, can withstand greater impact load without rupture, can be used for casting a variety of impact-resistant wear parts.
cone crusher parts cone crusher parts

Mn14Cr2 Cone Crusher Wear Parts

We use the Mn14Cr2 to cast cone crusher parts. Decrease the content of element “Mn” and”C”,and add more “Cr” element. By use this material,it can make up the shortcomings of the traditional high manganese steel toughness, effectively extending the service life of wear-resistant parts.

Mn18 Cone Crusher Wear Parts

Casting wear-resistant manganese steel is the longest history, the most widely used category. In particular, the standard type of Mn18 high manganese steel cone liners, containing manganese and carbon content is high; austenite and carbide as-cast austenite and carbide, 1050 ℃ water toughening, the vast majority of carbide solid solution in Austria-body.
cone crusher parts cone crusher parts

Mn18Cr2 Cone Crusher Wear Parts

Using Mn18Cr2 material, the compound metamorphic treatment, grain refinement, purification of grain boundaries; casting solidification control methods to optimize the heat treatment process, casting high hardness, toughness, impact resistance, suitable for large and medium-sized cone crusher jobs

Mn22Cr2 Cone Crusher Wear Parts

We manufacture cone liner for US clients by this material,after their feedbacks, it has more span life.

Tic Insert Alloy Steel

The use of low-cost high-manganese steel or super-high manganese steel for large wear-resistant parts of the base material, composite parts in their work inlaid carbide, the bimetal composite wear parts wear surface has excellent wear resistance, non-wear Mask has excellent plasticity and impact toughness, reducing the wear of the matrix of high manganese steel, so that the cone liners and bowl liners greatly increased service life.
cone crusher parts cone crusher parts

Cone Crusher Parts

· G Range – G49 | G58 | G108 | G138 | G158 | G208 | G258 | G411 | G811 | G1211 | G1811 | G2011 | G2211 | G2511 | G3511 | G412 | G612 | G1012 | G1812 | G2612 | G3812 | G3514 | G4214 | G415 | G815 | G1315 | G2215 | G3815 | G5015

· GP® Range – GP7 | GP11F | GP11M | GP100S | GP100 | GP200S | GP200 | GP220 | GP300S | GP300 | GP330 | GP500 | GP500S | GP550 | GP550S |

· HP®- HP100 | HP200 | HP300 | HP400 | HP500 | HP700 | HP800 | HP3 | HP4 | HP5 | HP6

· MP® -MP800 | MP1000 | MP1250 | MP2500

· MX®-MX3 |MX4/MX5

· Omnicone - Omnicone 1560 | Omnicone1352 | Omnicone 1144 | Omnicone 937

Telsmith Cone Crusher Parts

· Gyrasphere® – 24″ | 36″ | 38″ | 44″ | 48″ | 52″ | 66″

Sandvik Cone Crusher Parts

· CH® Series -CH430 | CH420 | QH330 | CH660 | CH880 | CH780 | CH540/CH550 | CH870 | CH880 | CH890 | CH895

· Hydrocone® 1800 Series -H2800 | H3800 | H4800 | H6800 | H8800 | H7800

· Hydrocone® 1000 Series -H2000 | H3000 | H4000 | H6000 | H7000 | H8000

· Superior® CS Series – CS420 | CS430 | CS660 | CS440 | CS660

· Superior® 1800 Series – S2800 | S3800 | S4800 | S6800

· Superior® 1000 Series – S2000 | S3000 | S4000 | S6000

· Svedala® H Series- H22 H36 H45 H51 H200 H1000/H1800 H2000/H2800 H3000/H3800 H4000/H4800

· UH 320 RC 3800; UH 421 RM 4800; UH 440i CM 4800i; US 440i CMS 4800i; UH 640 CM 6800

Shanghai SBM Cone Crusher Parts

· HPC Series--HPC220 | HPC400

· HCS Series--HCS100 | HCS160 | HCS250 | HCS315

· PY Series--PYB600 | PYZ600 | PYB900 | PYD900 | PYZ900 | PYB1200 | PYD1200 | PYZ1200 | PYB1750 | PYD1750 | PYZ1750 | PYB2200 | PYD2200 | PYZ2200

Minyu Cone Crusher Parts

· MSP® Series--MSP100(C) | MSP100(F) | MSP200(C) | MSP200(F) | MSP200(S) | MSP300(C) | MSP300(F) | MSP300(S)

Shanbao Cone Crusher Parts

· PY Series--PYB600 | PYZ600 | PYB900 | PYD900 | PYZ900 | PYB1200 | PYD1200 | PYZ1200 | PYB1750 | PYD1750 | PYZ1750 | PYB2200 | PYD2200 | PYZ2200

Allis Chalmers Cone Crusher / Svedala Cone Crusher; Cedarapids Cone Crusher / El-Jay Cone Crusher; Clemro Cone Crusher; JCI Cone Crusher; Kue-Ken Cone Crusher; Cone Crusher / Nordberg Cone Crusher / Symons Cone Crusher; Minyu Cone Crusher; Parker Cone Crusher; Pegson Cone Crusher; Pioneer Cone Crusher; Sandvik Cone Crusher; Telsmith Cone Crusher; Traylor Cone Crusher; Miscellaneous Cone Crusher;

Gyratory Crusher Parts

The gyratory crusher is a compressive style crusher for primary-stage applications. Its steep crushing chamber and long crushing surfaces provide exceptionally high capacity and long liner life.

Upper Intake Liners

• Manganese alloys • Low-alloy steel, impact resistant Chamber Mid Liners • High manganese alloys • Low-alloy steel, abrasion and impact resistant Chamber Bottom Liners • Low-alloy- steel, high abrasion and impact resistant • High-chrome special, maximum abrasion resistance
